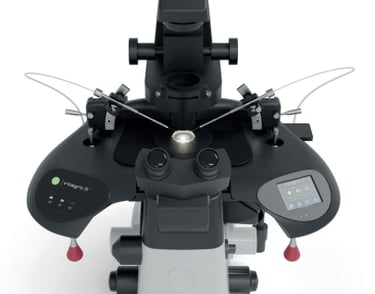

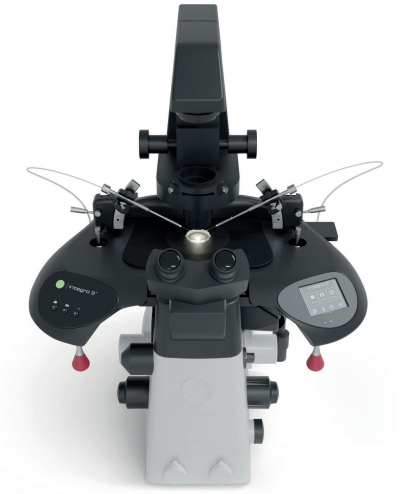

Integra 3
RI Integra 3 is geared towards one goal – to ensure you create the best possible conditions for ICSI and sample manipulation.
Key Features:
No Cold Spots with Thermosafe: maintains sample temperature with a gentle stream of warm air under the Petri dish
Improved rapid micropipette set-up with one-step angle adjustment
Motion sensor LED light underneath the stage for improved visibility when changing objectives
Heating system status indicator light and alarm monitors every second of the process. A log is kept of every alarm triggered
Large built-in mechanical XY stage plus temperature controllers with easy access buttons and touch screen
New extra-fine mechanisms for smooth and precise movement of the stage and micropipettes
Thermosafe
Thermosafe is an integral heating system that helps to keep samples at the optimum temperature. It emits warm air precisely and uniformly towards the Petri dish.
The result of this is a fail-safe guarantee:
no more cold spots
no more hot spots
no more ambiguity
There is also a stage temperature health indicator light to reassure you that the integrated heating system is functioning correctly.
Product Specification
Heating System
Thermosafe™ Air Heating System with Heated Metal Insert:
25mm aperture (standard)
16mm aperture (optional)
ITO Heated Glass Insert (optional)
Temperature Controller
Accuracy: better than ±0.1ºC when calibrated against known reference
Resolution: 0.1ºC
Setpoint Temperature Range: 30-45ºC
Display
3.5″ colour LCD touch screen display for temperature control
Connectivity
USB socket for connection to PC running RI Viewer software
Syringes
Choice of SAS (air), SAS-SE (air) and SOS (oil)
Weight
Maximum weight of microscope mounted components (excluding front and rear adaptors): 10.4kg
Actual weight is configuration dependent
Dimensions
Footprint (not including microscope): Width 56cm, Depth 38cm
Power Supply
Input: 100-240VAC, 50-60HZ, Max. 1.8A, Class 1
Output: 12VDC, Min. 11A (132W)
Operating Range
Temperature: 15ºC (59ºF) to 40ºC (104ºF)
Humidity:15% to 85% RH (non condensing)
Micropipette Compatibility
Compatible with CooperSurgical micropipettes (or other industry standard 1.0mm outside diameter micropipettes or equivalent specification)
